Modifying a reusable tile layout

2025-03-24Last updated

In the Tiles task, you can modify the properties and tiles of a reusable tile layout, and then overwrite the existing tile layout or save it as a new tile layout.

What you should know

You must have the Modify layout properties privilege to modify a reusable tile layout.

Procedure

To change the properties of a reusable tile layout:
  1. Right-click the entity and select Edit layout.
  2. Configure the properties of the tile layout:
    Name
    Revise the name of the reusable tile layout.
    Association
    Select the area or Directory to which the layout belongs.
    Note:
    This field is only displayed for users with the Modify area properties privilege.
    Partitions
    Select the partition to which the layout belongs.
    Note:
    This field is only displayed for users who have the Modify layout properties privilege and belong to more than one partition.
  3. Click Save.
To modify the tiles of a reusable tile layout:
  1. Double-click a tile layout.
    The layout is displayed in the tiles.

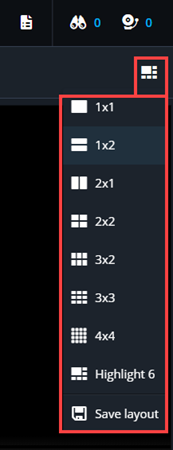

  2. To change the tile pattern, click Change tile pattern and select a tile pattern.
  3. Drag your entities to tiles.
  4. To overwrite the existing tile layout:
    1. Right-click the layout entity and select Save as.
    2. In the Confirm save layout dialog box, click Yes.
  5. (Optional) Save the layout as a new tile layout:
    1. Right-click a tile and select Save layout.
    2. Configure the properties of the tile layout.
    3. Click Save.

Example

Watch this video to learn more. Click the Captions icon (CC) to turn on video captions in one of the available languages.
