2025-04-02Last updated
To provide users with quick access to a consistent view of certain entities, you can
create reusable tile layouts.
What you should know
- Tiles can only display camera, door, and virtual zone entities.
- You must have the Add layouts privilege to create a reusable tile layout.
- Reusable tiles layouts are available to users who have access to the partitions where
the layouts reside.
Procedure
-

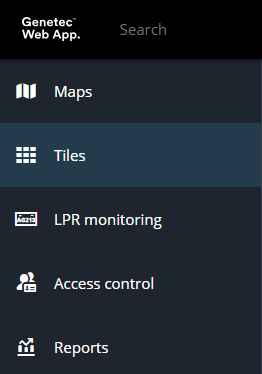

From the vertical navigation bar, click Tiles.
-
Click Change tile pattern and select a tile pattern.
-
Click Browse (
).
A panel opens, displaying the entities available to the user.
-
Drag the entities that you want to monitor to tiles.
-
Right-click any tile and select Save layout.
The Save layout dialog box opens.
-
Specify the details of the tile layout:
- Name
- Enter a name for the tile layout.
- Association
- Select the area that the tile layout belongs to.
Note: This
field is only displayed for users who have the Modify area properties
privilege.
- Partitions
- Select the partition that the layout belongs to.
Note: This
field is only displayed for users who have the Modify layout properties
privilege and belong to more than one partition.
-
Click Save.
The layout is displayed in the list of areas and entities, nested under its
associated area or Directory.
Example
Watch this video to learn more. Click the
Captions icon (CC) to turn on video
captions in one of the available languages.
After you finish
Double-click the tile layout to open it.
