Monitoring ALPR hits in the LPR monitoring task

Using the LPR monitoring task, you can monitor hits from the ALPR units in your system.

1. From the vertical navigation bar, click LPR Monitoring.

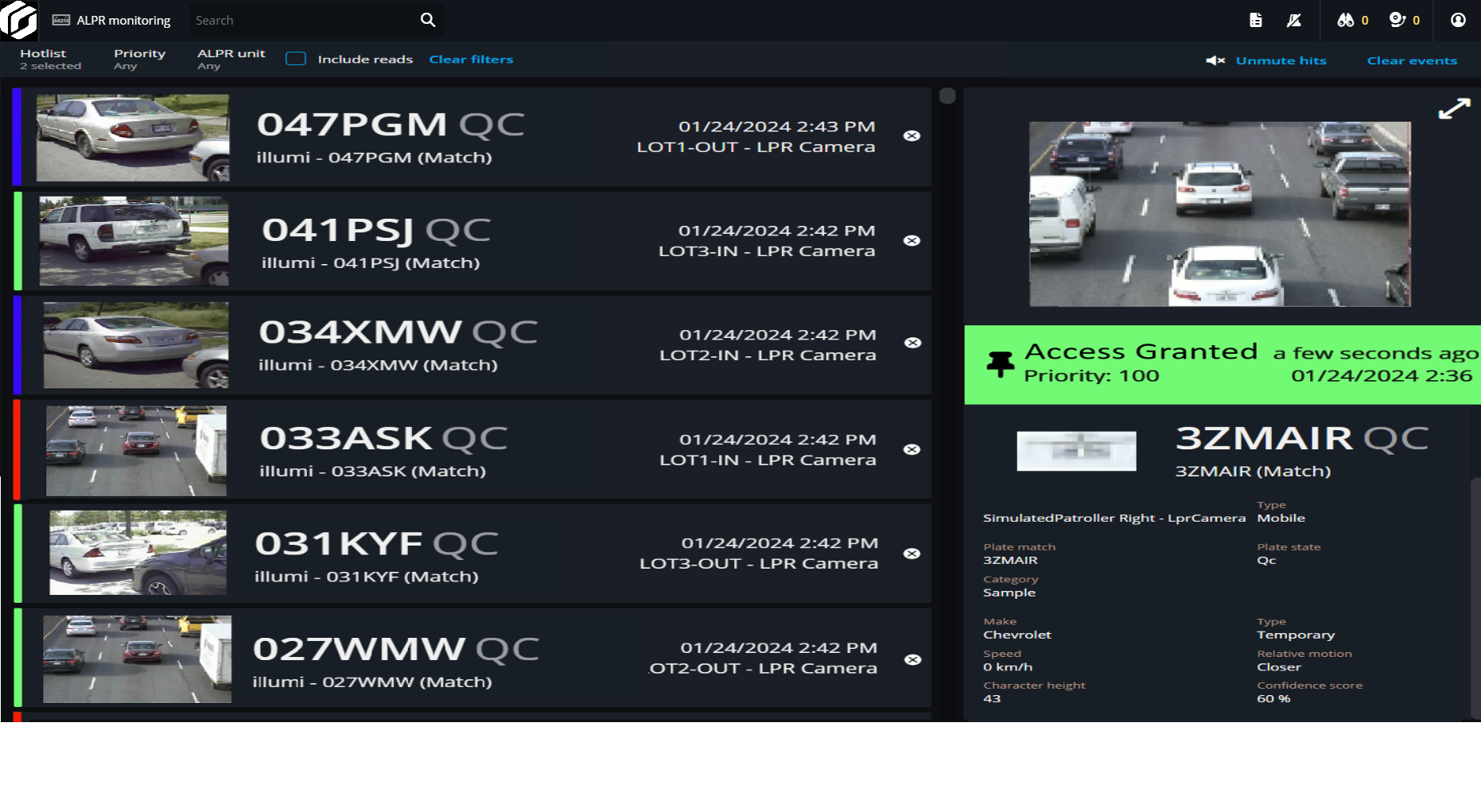

   The task opens, with the center pane displaying all hit events from across your system.

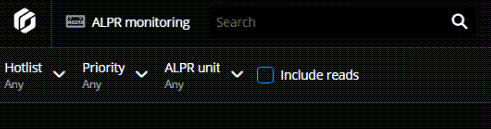

2. Apply filters to refine which hits are displayed. Filters include:

   Hotlist

   The specific hotlists that you want to monitor.

   Priority

   The priority defined in the hotlist.

   ALPR unit

   The unit that was the source of the hit.



   Note: Filters are only applied to new hits. Hits that occurred before you apply filters remain in the list of events.

   Also, filters are retained when you leave the LPR monitoring task or sign out of the Genetec™ Web App.

3. (Optional) To have a sound play when a hit occurs, make sure that sound is enabled in the task.

4. To view details of a hit, click on the event in the center pane.
   The right-hand pane displays details related to the vehicle and the event.



5. (Optional) To clear a specific hit, click the Clear hit () button on the event in the center pane.
6. (Optional) To clear all displayed hits displayed in the task, do the following:
   • Click Clear hits.
   • In the Clear hits dialog box, click Clear.
   Note: Hit events that are cleared in the LPR monitoring task are still available in reports.
